Light group: HOR 108A
LED quantity: 91
Light category: multifunction rear
Rear position light: yes
Supply voltage: 12/24 V
Reflecting device: yes
Operating temperature range: from -30°C to +50°C

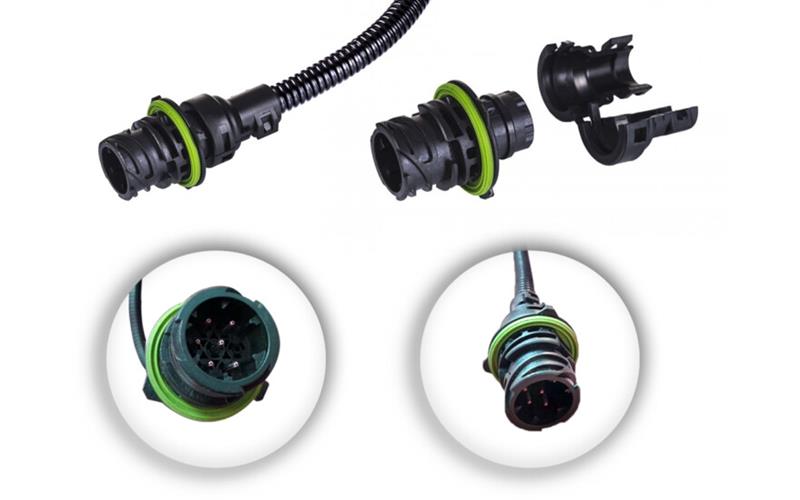

Cable: 6x0,5 mm²; length 0,3 m, AMP 7 PIN, round
Side: right
Reversing light: yes
Fog light: yes
Brake light: yes
Rear direction indicator: yes
LED light: yes
Ingress protection rating: IP 68
Lamp functions and power consumption at 12/24 V operating voltage:
– rear position light NEON (2/4 W);
– brake light NEON (10/10 W);
– rear direction indicator NEON (4/13 W);
– reversing light (2/4,5 W);
– fog light (4/4 W);
– reflective device.
LED quantity: 91
Light category: multifunction rear
Rear position light: yes
Supply voltage: 12/24 V
Reflecting device: yes
Operating temperature range: from -30°C to +50°C
Cable: 6x0,5 mm²; length 0,3 m, AMP 7 PIN, round
Side: right
Reversing light: yes
Fog light: yes
Brake light: yes
Rear direction indicator: yes
LED light: yes
Ingress protection rating: IP 68
Lamp functions and power consumption at 12/24 V operating voltage:
– rear position light NEON (2/4 W);
– brake light NEON (10/10 W);
– rear direction indicator NEON (4/13 W);
– reversing light (2/4,5 W);
– fog light (4/4 W);
– reflective device.
Data sheet
- Condition
- NEW
- Colour
- WHITE / RED / ORANGE
- Material
- PLASTIC
Specific References
- EAN13
- 5901958830129
